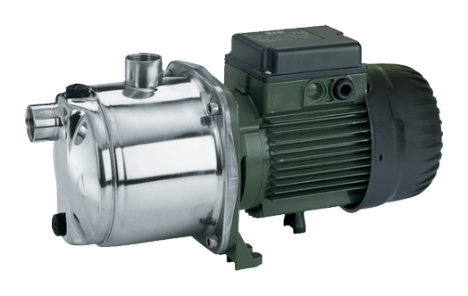

EURO / EURO INOX Pompa Air Sumur Dangkal Multistage

Pompa Multistage Impeller yang menghasilkan daya dorong tinggi dan stabil. Cocok digunakan untuk meningkatkan tekanan air dan dapat juga digunakan sebagai pompa semi jet pump. Dirancang hemat listrik dan Anti bising.

Type

Daya Motor (P2)

Daya Hisap Maks

Total Head Maks (H)

Kapasitas Maks (Q)

Pipa Inlet & Outlet


w

m

m

I/min

inch

30/50

560

9

40,2

80

1

40/50

750

21

55,3

80

1

40/80

1000

9

58

120

1


Description
Multistage horizontal centrifugal pump, featuring
extremely silent running suitable for domestic use for
water supply and pressurisation, irrigation of gardens
and vegetable gardens, and moving water in general.
Euro: pump body in 200 UNI ISO 185 cast iron.
Euroinox: stainless steel pump body.
Eurocom: technopolymer pump body.
Motor support in die-cast aluminium, seal holder in AISI
304 steel. Mechanical seal in carbon/ceramic. Rotor shaft
in AISI 304 steel. Rotors, diffuser bodies and diffusers in
technopolymer. Adjustment rings in stainless steel.

Features

   Protection level of motor: IP 44
   Protection level of terminal board: IP 55
   Insulation class: F
   Operating range: from 10 to 120 l/min. with a head
   of up to 72 m.
   Pumped liquid characteristics: clean, free from solid
   or abrasive substances, not viscous, not aggressive,
   not crystallised, chemically neutral and close to the
   characteristics of water.
   Liquid temperature range:
   from 0°C to +35°C C for domestic use (EN 60335-2-41)
   from 0°C to +40°C for other uses.
   Maximum ambient temperature: +40°C
   Maximum operating pressure: 8 bar (800 kPa)
   Euroinox: self-priming.other uses.
   Maximum ambient temperature: +40°C
   Maximum operating pressure: 8 bar (800 kPa)
   Euroinox: self-priming.
