Product > Water Pump > DAB Pump

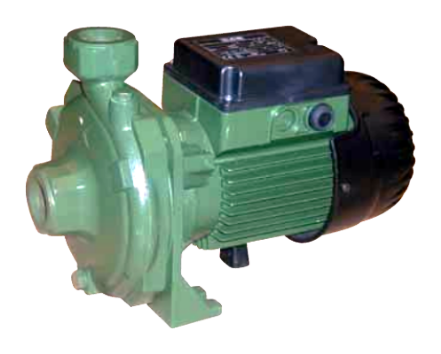

Single Impeller Centrifugal Pump


Cocok untuk instalasi rumah, industri dan pertanian.



Type

Daya Motor (P2)

Daya Hisap Maks

Total Head Maks (H)

Kapasitas Maks (Q)

Pipa Inlet & Outlet



w

m

m

I/min

inch

K20/41 M

370

9

20

30

1

K12/200 M

750

9

25

40

1½ & 1

K30/100 M

1100

9

29,2

40


Description
Twin impeller centrifugal pump designed for use in
pressurisation units for water supply systems for
domestic, civil and industrial use. Suitable for sprinkling
irrigation and other water supply applications. Cast iron
pump body and motor support. Technopolymer impeller.
Stainless steel driving shaft. Carbon/ceramic mechanical
seal. Asynchronous, closed motor, cooled by external
ventilation. Built-in thermal and current overload
protection and a capacitor permanently on in the singlephase
version. For the protection of the three-phase
motor it is advisable to use a suitable overload protection
complying with the regulations in force.

Features
   Operating range: from 1.2 to 30 m3/h with head up
   to 97 metres.
   Pumped liquid characteristics: clean, free from solids
   or abrasive substances, not viscous, not aggressive,
   not crystallised, chemically neutral and close to the
   characteristics of water.
   Liquid temperature range:
   from -10°C to +50°C: for K 35/40, K 45/50, K 35/100,
   K 40/100, K 55/100
   from -15°C to +110°C: for K 55/50, K 66/100, K
   90/100, K 70/300, K 80/300, K 70/400, K 80/400.
   Maximum operating range:
   K 35/40, K 35/100, K 40/100: 6 bar (600 kPa)
   K 45/50, K 55/50: 8 bar (800 kPa)
   K 55/100, K 66/100: 10 bar (1000 kPa)
   K 90/100, K 70/300, K 80/300 K 70/400, K 80/400:
   12 bar (1200 kPa).
   Maximum ambient temperature: +40°C.
   Protection level: IP 44.
   Terminal board protection level: IP 55.
   Insulation class: F.
